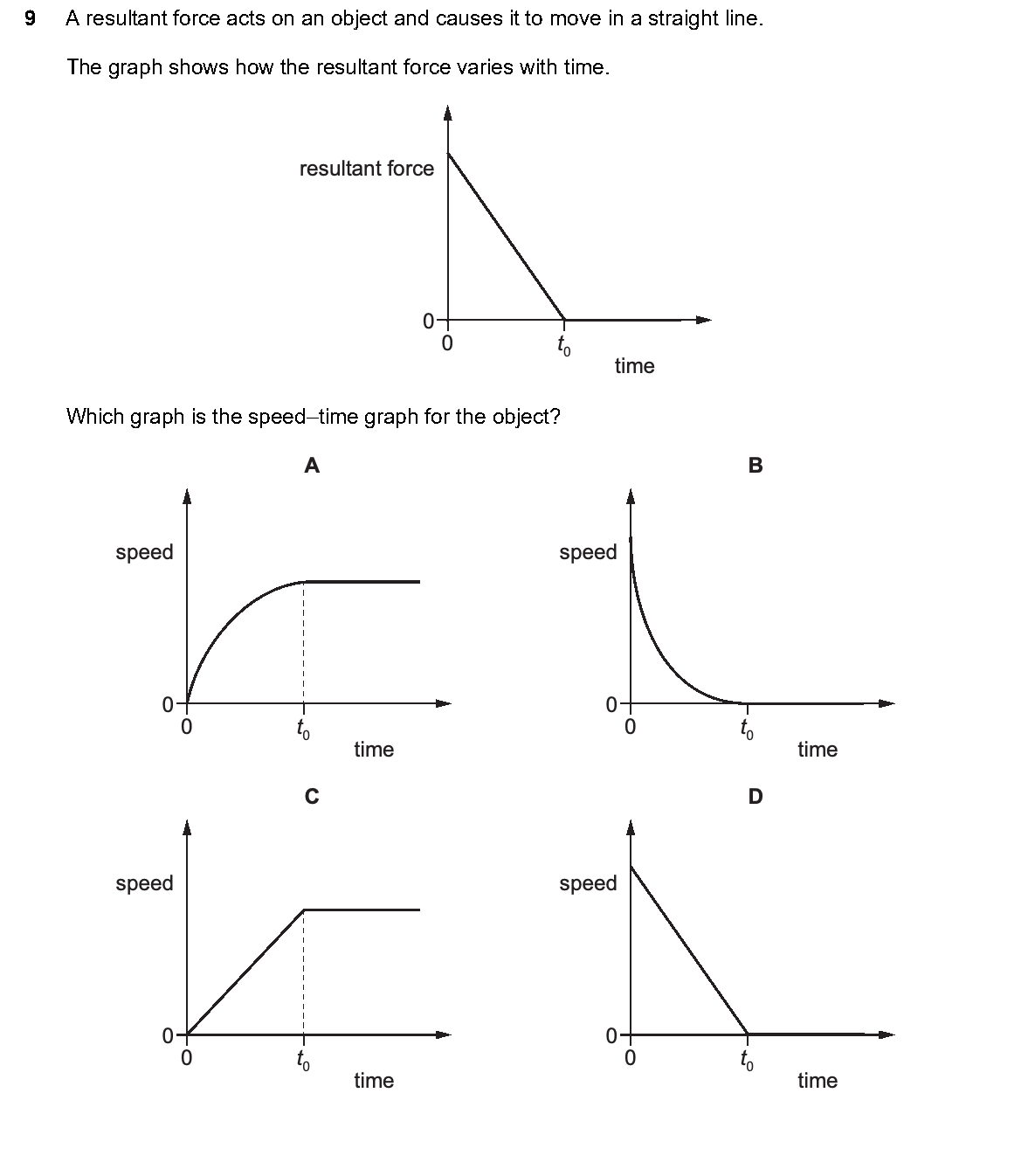

9 A resultant force acts on an object and causes it to move in a straight line. The graph shows how the resultant force varies with time. resultant force 0 0 t 0 time Which graph is the speed–time graph for the object? A B speed speed 0 0 0 t 0 t 0 0 time time C D speed speed 0 0 0 t 0 t 0 0 time time
9 A resultant force acts on an object and causes it to move in a straight line.
The graph shows how the resultant force varies with time.
resultant force
0
0 t
0
time
Which graph is the speed–time graph for the object?
A B
speed speed
0 0
0 t 0 t
0 0
time time
C D
speed speed
0 0
0 t 0 t
0 0
time time
Select your answer:
