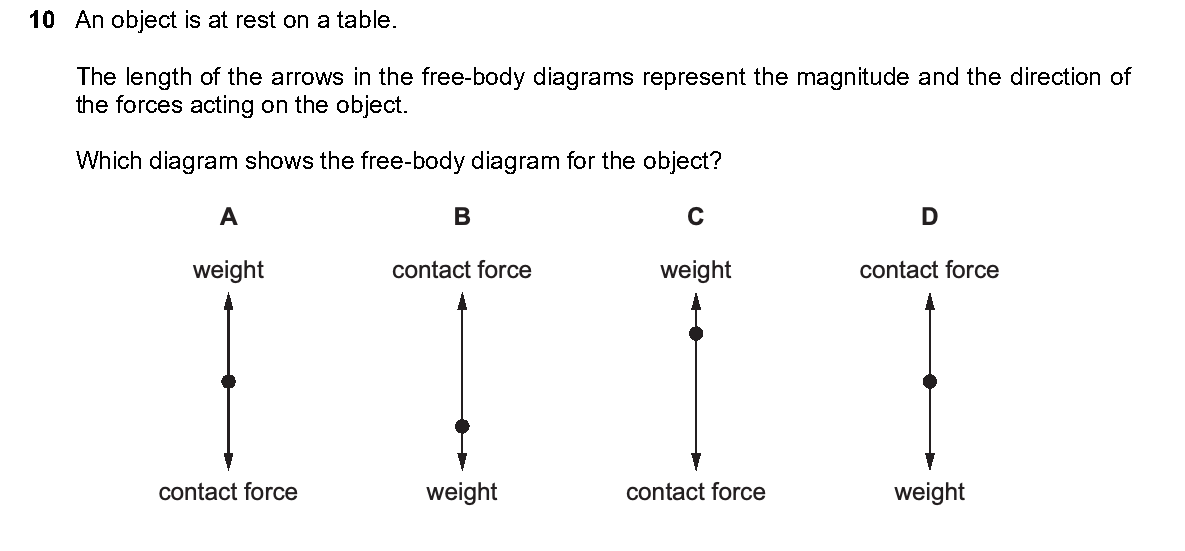

10 An object is at rest on a table. The length of the arrows in the free-body diagrams represent the magnitude and the direction of the forces acting on the object. Which diagram shows the free-body diagram for the object? A B C D weight contact force weight contact force contact force weight contact force weight
10 An object is at rest on a table.
The length of the arrows in the free-body diagrams represent the magnitude and the direction of
the forces acting on the object.
Which diagram shows the free-body diagram for the object?
A B C D
weight contact force weight contact force
contact force weight contact force weight
Select your answer:
