2023 · Specimen · 0625/04 | Q8

0/33parts marked · 0 of 75 marks

Question (8 of 12)6 marks · Practise this topic →

Options

Available practice: 75 of 80 marks. Parts 3(b), 6(a)(i) await marking support. Scores cover available parts only.

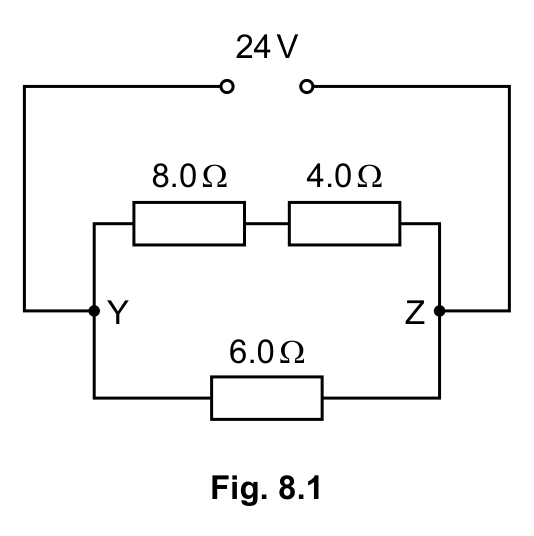

(a)Calculate the combined resistance between Y and Z.

Answer guidance

Calculate Show your working. The method can earn marks even when the final value is wrong, and a bare answer often cannot.

[4 marks]

(b)Calculate the potential difference (p.d.) across the 8.0 Ω resistor.

Answer guidance

Calculate Show your working. The method can earn marks even when the final value is wrong, and a bare answer often cannot.

[2 marks]

0625/04/SP/23Cambridge IGCSE Physics 0625 · Specimen 2023 · Paper 4 · Question 8
