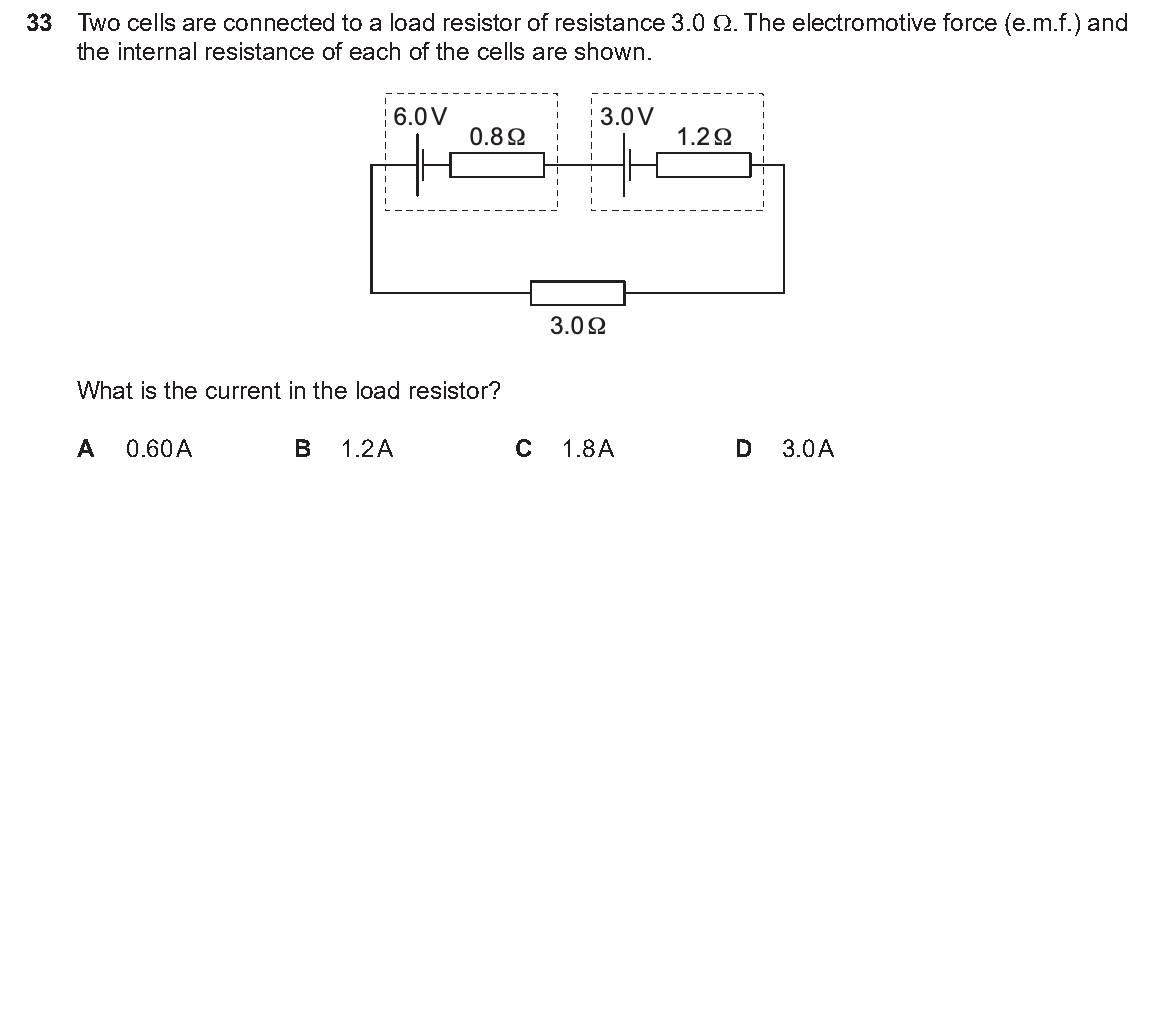

33 Two cells are connected to a load resistor of resistance 3.0 (cid:58). The electromotive force (e.m.f.) and the internal resistance of each of the cells are shown. 6.0 V 3.0 V 0.8 Ω 1.2 Ω 3.0 Ω What is the current in the load resistor? A 0.60 A B 1.2 A C 1.8 A D 3.0 A
33 Two cells are connected to a load resistor of resistance 3.0 (cid:58). The electromotive force (e.m.f.) and
the internal resistance of each of the cells are shown.
6.0 V 3.0 V
0.8 Ω 1.2 Ω
3.0 Ω
What is the current in the load resistor?
A 0.60 A B 1.2 A C 1.8 A D 3.0 A
Select your answer:
