2024 · M/J · 9702/21 | Q3

0/25parts marked · 0 of 51 marks
All questions
Question (3 of 7)7 marks · Practise this topic →
Options

Report Wrong question content

CIE-9702-2024-MJ-p21 · Question 3

Available practice: 51 of 60 marks. Parts 1(a), 3(a), 6(d)(i), 6(d)(ii) await marking support. Scores cover available parts only.

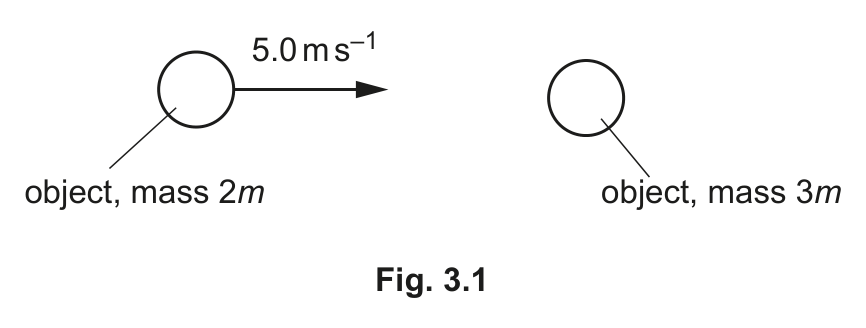

An object of mass 2m is travelling at a speed of 5.0 m s⁻¹ in a straight line. It collides with an object of mass 3m which is initially stationary, as shown in Fig. 3.1.

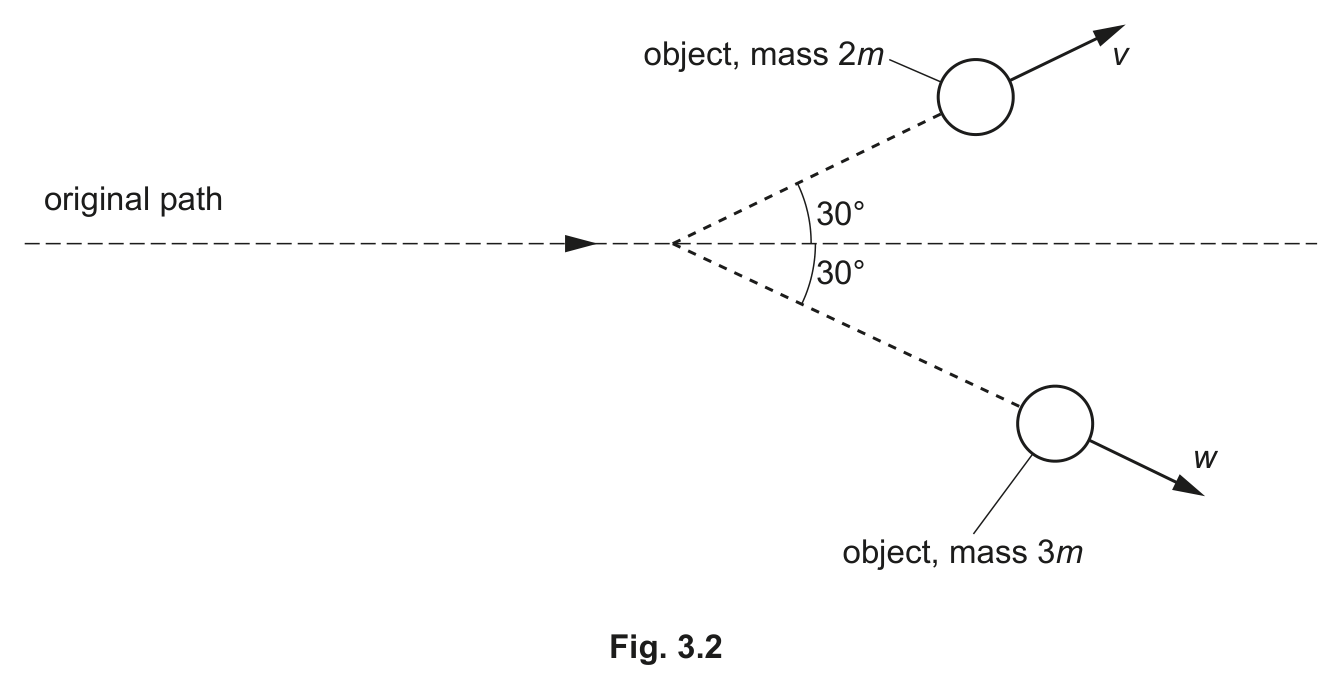

After the collision, the object of mass 2m moves with velocity v at an angle of 30° to its original direction of motion. The object of mass 3m moves with velocity w also at an angle of 30°, as shown in Fig. 3.2.

(b)By considering the conservation of momentum in two dimensions, calculate the magnitudes of v and w.

Fig. 3.1 — see the question text for what it shows
Fig. 3.2 — see the question text for what it shows
[4 marks]

An object of mass 4.2 kg is travelling in a straight line at a speed of 6.0 m s⁻¹. The object is brought to rest in a distance of 0.050 m by a constant force.

(c)Calculate the magnitude of this force.

Answer guidance

Calculate Show your working. The method can earn marks even when the final value is wrong, and a bare answer often cannot.

[3 marks]

9702/21/M/J/24Cambridge International AS & A Level Physics 9702 · May/June 2024 · Paper 2 variant 1 · Question 3
