37 A battery with negligible internal resistance is connected in series with a resistor and a light- dependent resistor (LDR) as shown. P Q V V The light intensity on the LDR is decreased. How do the readings of the voltmeters change? reading on reading on voltmeter P voltmeter Q A decreases decreases B decreases increases C increases decreases D increases increases

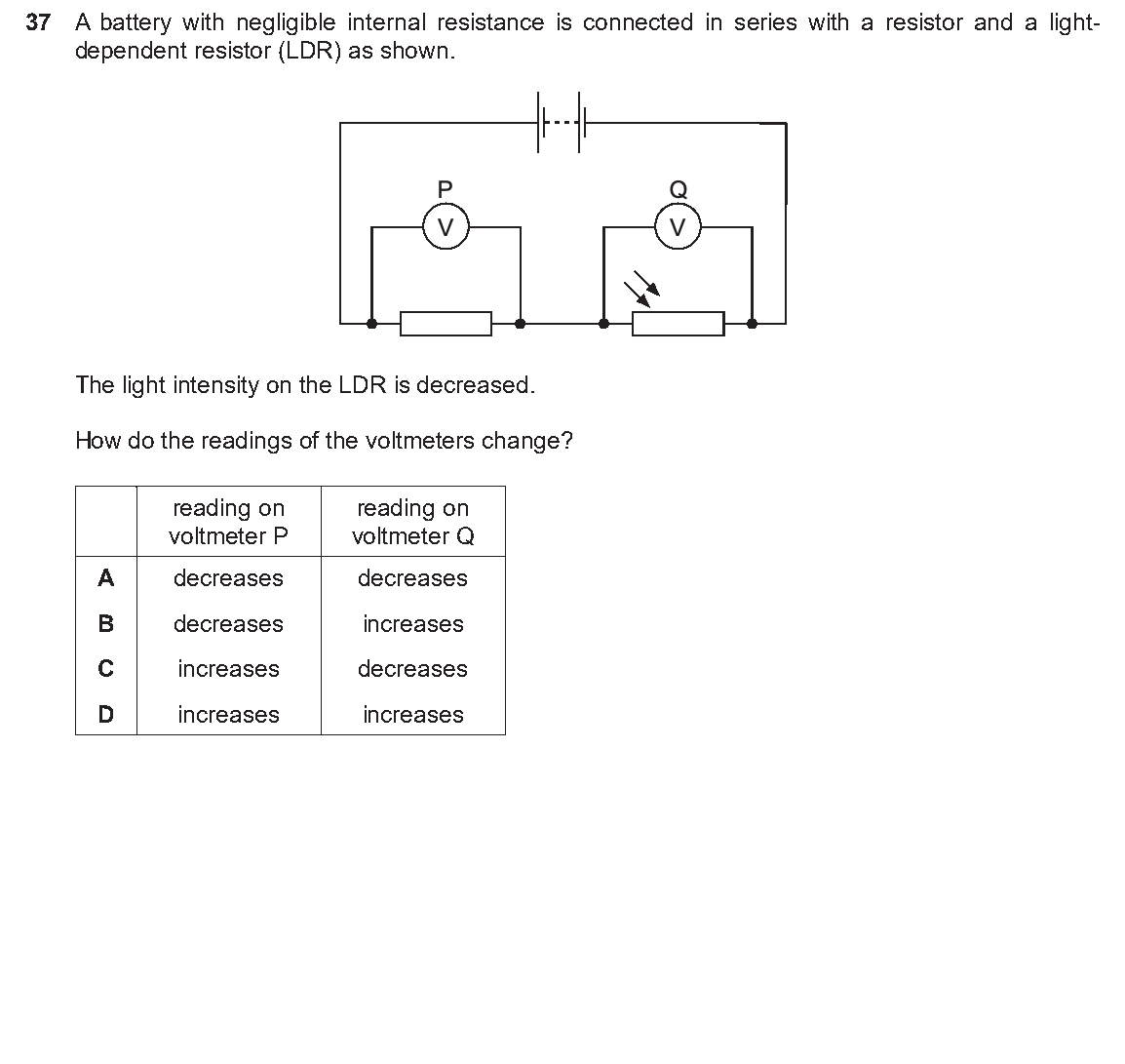

37 A battery with negligible internal resistance is connected in series with a resistor and a light-
dependent resistor (LDR) as shown.
P Q
V V
The light intensity on the LDR is decreased.
How do the readings of the voltmeters change?
reading on reading on
voltmeter P voltmeter Q
A decreases decreases
B decreases increases
C increases decreases
D increases increases
Select your answer:
