3 The diagram shows the speed–time graphs for two objects moving with uniform acceleration. object P object Q 6.0 10.0 speed speed m / s m / s 0 0 0 4.0 0 5.0 time / s time / s A student uses the graphs to make two conclusions. 1 The distance travelled by object P is 26m less than the distance travelled by object Q. 2 The acceleration of object P is 0.50m/s2 less than the acceleration of object Q. Which conclusions are correct? A neither 1 nor 2 B 1 only C 2 only D both 1 and 2

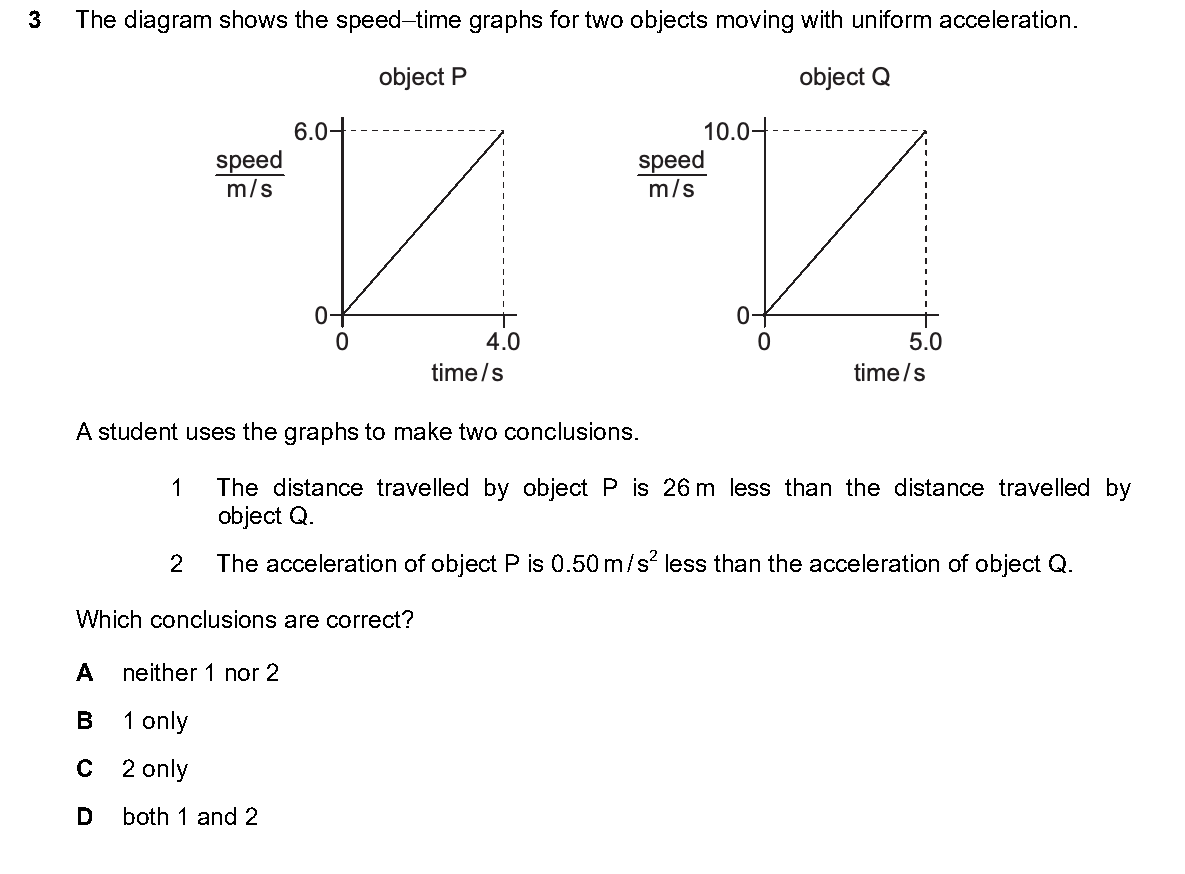

3 The diagram shows the speed–time graphs for two objects moving with uniform acceleration.
object P object Q
6.0 10.0
speed speed
m / s m / s
0 0
0 4.0 0 5.0
time / s time / s
A student uses the graphs to make two conclusions.
1 The distance travelled by object P is 26m less than the distance travelled by
object Q.
2 The acceleration of object P is 0.50m/s2 less than the acceleration of object Q.
Which conclusions are correct?
A neither 1 nor 2
B 1 only
C 2 only
D both 1 and 2
