Model trains move along a track passing through two model stations, A and B. Students analyse the motion of a model train. They start a digital timer as the train starts to move. They record the time it enters Station A and the time it enters Station B.

(a)Calculate the time taken from the train entering Station A to the train entering Station B. State your answer in seconds.

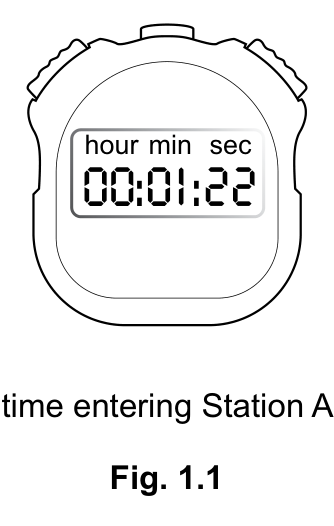

Fig. 1.1 — see the question text for what it shows

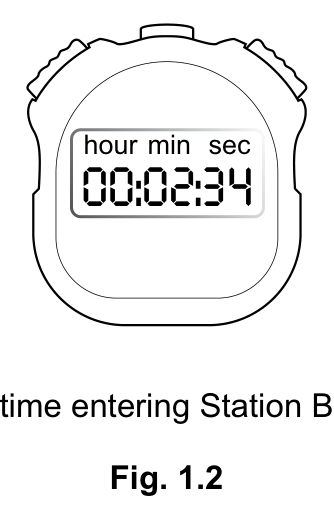

Fig. 1.2 — see the question text for what it shows

Answer guidance

Calculate Show your working. The method can earn marks even when the final value is wrong, and a bare answer often cannot.

[1 mark]

Model trains move along a track passing through two model stations, A and B. A faster train takes 54 s to travel from Station A to Station B. The distance between the stations is 120 m.

(b)Calculate the average speed of this train.

Answer guidance

Calculate Show your working. The method can earn marks even when the final value is wrong, and a bare answer often cannot.

[3 marks]

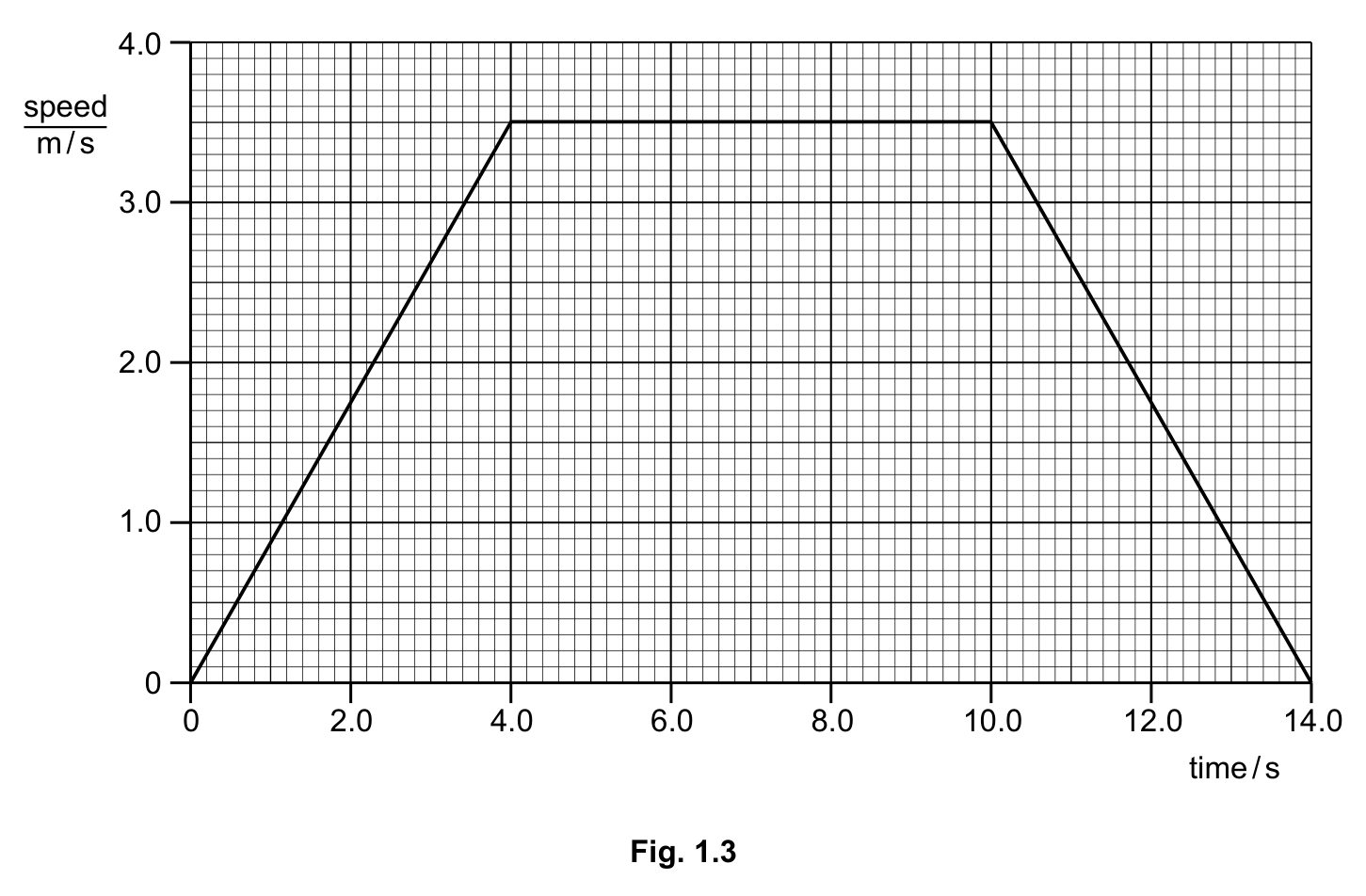

Fig. 1.3 shows the speed-time graph for another model train travelling on a different part of the track.

(c)Using the graph, determine the total distance travelled by this train on this part of the track.

Fig. 1.3 — see the question text for what it shows

Answer guidance

Using You must use the thing it names. An answer that reaches the right value another way may not score.

[4 marks]
